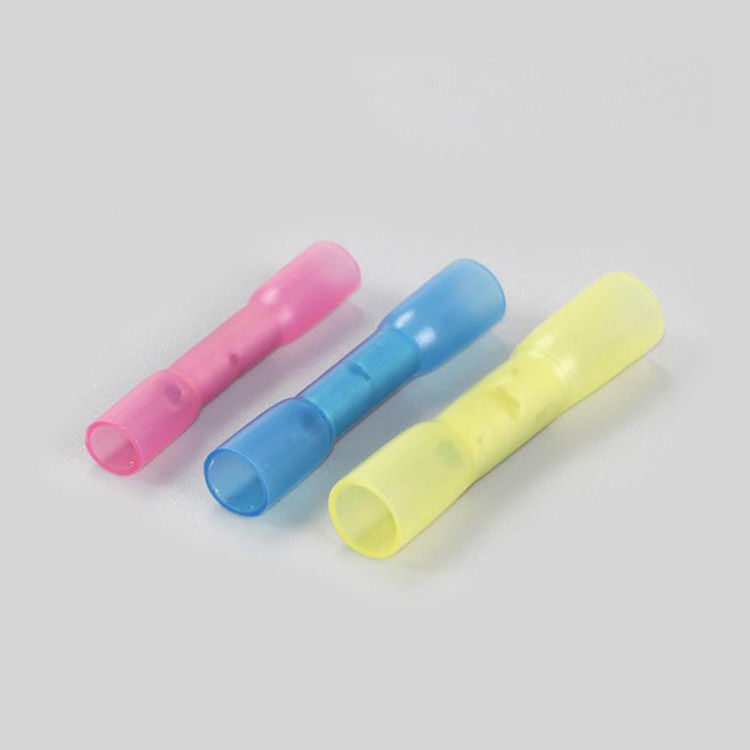

220PCS PE Double Splice Tube Butt Shrinkable Terminal Insulated Crimp Heat Shrink Wire Connector Kit
Detalhes do produto:
| Lugar de origem: | Guangdong, China |
| Número do modelo: | rosa amarela azul vermelho |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 2 |
|---|
|
Informação detalhada |
|||
| Tipo: | Empilhadeira | Cor: | rosa amarela azul vermelho |
|---|---|---|---|
| Material: | Nylon+Tonned | Certificado: | ISO9001 SGS CE CQC ROHS |
| Nome do produto: | Conectores de fios de vedação de solda | Faixa de fio: | 10-12/ 14-16/ 18-22 AWG |
| Pacote: | 180/200/210/220/240/250/270/480pcs/caixa | MOQ: | 1Box |
| Item: | Tubulação de penhor de calor | Aplicativo: | Conexão do fio |
| Uso: | Cabo de conexão | ||
| Destacar: | PE insulated wire connectors,heat shrink crimp terminals,220PCS splice tube kit |
||
Descrição de produto
Each box contains:

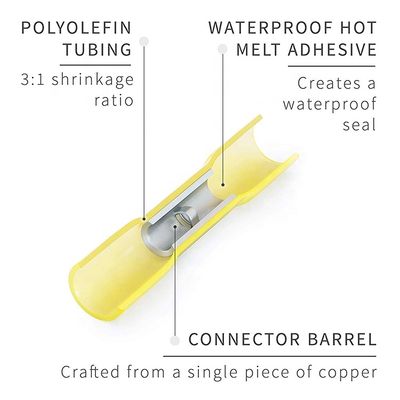

Heat Shrink butt connector

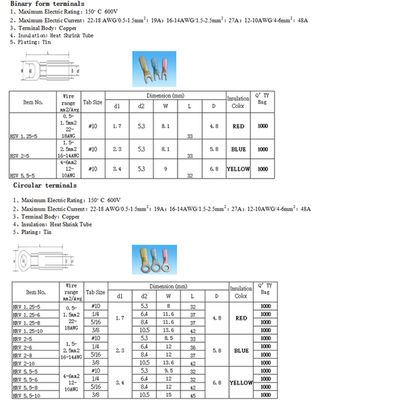

Heat Shrink Ring Terminal (#10)
Heat Shrink Ring Terminal (1/4")
Heat Shrink Ring Terminal (5/16")
Heat Shrink Ring Terminal (3/8")

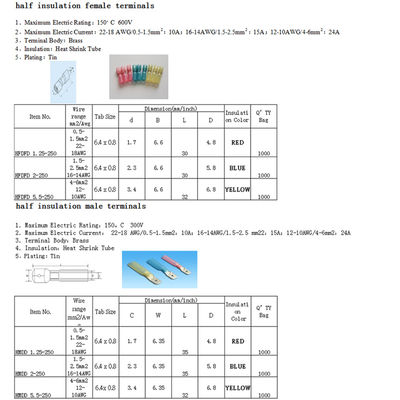

Male Quick Disc
Female Qucik Disc
Fork Terminal(#10)
| Property | Specification Requirement | Test Method | Typical Value |
| Tensile strength(Room temp.) | Min.10.4Mpa | UL224 | 17.2Mpa |
| Elongation at break(Room temp.) | Min.200% | UL224 | 280% |
| Tensile strength after aging(158℃ 168hrs) | Min.7.3Mpa | UL224 | 11.5Mpa |
| Elongation after aging(158℃ 168hrs) | Min.100% | UL224 | 200% |
| Voltage withstand(Uh-aged) | Withstand 2.5kv for 1 minute and breakdown | UL224 | pass |
| Voltage withstand(Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown |
UL224 | pass |
| Copper corrosion(158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. |
| Copper stabiity(158℃ 168hrs) | No sign of degradation (min.elongation 100%) | UL224 | pass |
| Cold blend(-30℃ 1hrs) | No crack | UL224 | pass |
| Maximum secant modulus(2%) | 173Mpa | UL224 | pass |
| Volume resistivity | Min.1014Ω.m | UL224 | pass |
| Heat shock(250℃ 4hrs) | No crack | ASTM D2671 | pass |
| Dielectric strength | >15.8kv/mm | ASTM D2671 | >25kv/mm |
